Basic parameters

• Length*Width*Height (mm)

  12245*2550*3865

• Inner height (mm)

  2030

• Wheelbase (mm)

  6090

• Front/rear overhang (mm)

  2795/3360

• Tire

  295/80R22.5

• Minimum turning diameter (m)

  18.5

• Maximum number of seats

  up to 53 (51+1+1)

• Fuel tank(L)

  520

• Maximum luggage compartment volume (m³)

  10.5

• Maximum manufacturer's total mass (kg)

  19500

• Front/rear axle (kg)

  7000/12500

Powertrain

• Engine

  MX-11 330 H5

• Transmission

  ZF 6AP2320C

• Rated power (kW/rpm)

  330/1600

• Rated torque (N·m/rpm)

  2350/900-1125

• Displacement

  10.8

• Emission

  Euro VI

Seat

• Wheelchair area

  ○

• 3-point air-suspended driver seat

  ●

• Tour guide seat

  ●

• 3-point belt passenger seat

  ●

Interior

• Soft cloth vertical strip curtain

  ●

• Refrigerator

  ●

• Wheelchair lifting device

  ○

• Integral luggage rack

  ●

• Roof hatch with ventilator

  ●

Exterior

• First passenger door

  ●

• Second passenger door

  ●

• Fully-enclosed single layer glass window

  ●

• Fully-enclosed insulating side window

  ○

• Single layer power driver window, without electric heating

  ●

• Single layer power driver window, with electric heating

  ○

• Laminated front windshield

  ●

• Electric heating front windshield

  ○

• Laminated tempered glass rear windshield

  ●

• Luggage compartment upward sliding door

  ●

A/C

• Heating/cooling A/C

  ●

• Heating/cooling defroster

  ●

Chassis

• Axle

  ZF independent axle

• Air suspension

  ●

• ECAS

  ●

• Steering wheel position

  LHD

• Electronic Parking Brake (EPB)

  ●

Safety and driving assistance system

• Electronic Braking System (EBS)

  ●

• Electronic Stability Control (ESC) System

  ●

• Advanced Emergency Braking System (AEBS)

  ●

• Lane Departure Warning System (LDWS)

  ●

• Intelligent Speed Assistance (ISA)

  ●

• Blind Spot Information System (BSIS)

  ●

• Moving Off Information System (MOIS)

  ●

• Driver Drowsiness and Attention Warning (DDAW)

  ●

• Alcolock (reserved)

  ●

• Tire Pressure Monitoring System (TPMS)

  ●

• 360° panoramic view system

  ○

• Electronic rear-view mirror

  ○

• Reverse radar

  ●

• Intelligent control wiper and headlamp

  ●

• Fire extinguisher device

  ●

Audio-visual entertainment and lighting

• 12.8-inch smart cockpit center console

  ●

• Microphone

  ●

• On-board WIFI

  ○

• Headlamp, LED

  ●

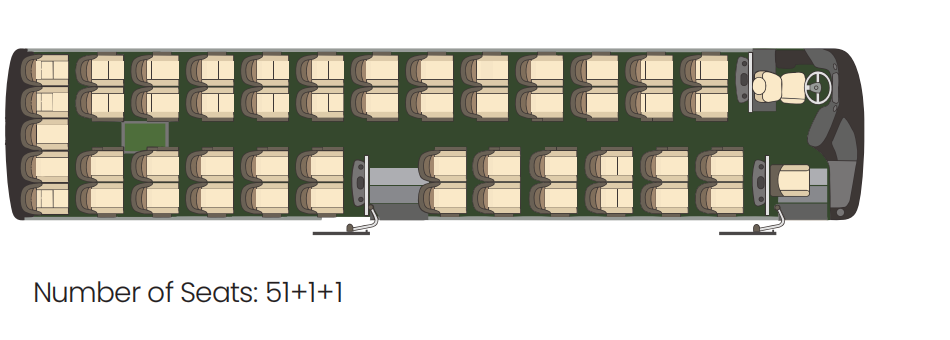

Seat Maps
