Basic parameters

• Length * Width * Height (mm)

  18720 * 2550 * 3600

• Wheelbase (mm)

  5900+6650

• Tire

  275/70R22.5

• Max speed (km/h)

  70

• Max number of seats

  up to 42 (41+1)

• Max passenger capacity

  up to 140

• Max manufacturer's total mass (kg)

  30000

• Front/middle/rear axle (kg)

  7700/10800/11500

• Floor type

  Low floor

New energy power system

• Traction battery (kWh)

  up to 255.02

• Rated power (kW)

  2*120

• Max gradeability

  17%

• Single plug

  ●

• Charging plug current (250A)

  ●

• Emergency Assist for Pedal Misapplication (EAPM)

  ●

• Intelligent power control

  ●

Seat

• Passenger seat (plus)

  ●

• Wheelchair area

  ●

• Yutong standard driver seat

  ●

• Yutong electric driver seat

  ○

• ISRI driver seat

  ○

Interior

• Driver partition

  ●

• Wheelchair ramp

  ●

• Electric wheelchair ramp

  ○

Exterior

• Passenger door

  2-2-2-2/2-2-2

• Single layer glass

  ●

• Insulated side window glass

  ○

• Manual driver window

  ●

• Power driver window

  ○

• Standard front windshield glass

  ●

• Electric heating front windshield

  ○

A/C

• Heating and cooling

  ●

• Heating system

  ●

• Cooling/heating defroster

  ●

Chassis

• Front axle

  ZF

• Drive axle

  ZF

• Third axle

  ZF

• Air suspension

  ●

• ECAS

  ●

• Steering wheel position

  LHD

• EPB

  ●

Safety and driving assistance system

• Forward Collision Warning (FCW)

  ●

• Lane Departure Warning System (LDWS)

  ●

• Moving Off Information System (MOIS)

  ●

• Blind Spot Information System (BSIS)

  ●

• Intelligent Speed Assistance (ISA)

  ●

• Driver Drowsiness and Attention Warning (DDAW)

  ●

• Advanced Driver Distraction Warning (ADDW)

  ●

• Collision Mitigation System (CMS)

  ○

• Electronic Braking System (EBS)

  ●

• Electronic Stability Control (ESC)

  —

• Alcolock

  ●

• Tire Pressure Monitoring System (TPMS)

  ●

• 360° panoramic view system

  ●

• Electronic rearview mirror

  ○

• Reversing radar

  ●

• Intelligent headlamp

  ●

Audio-visual entertainment and lighting

• Adjustable instrument

  ●

• Microphone

  ●

• On-board Wi-Fi

  ●

• Headlamp, LED

  ●

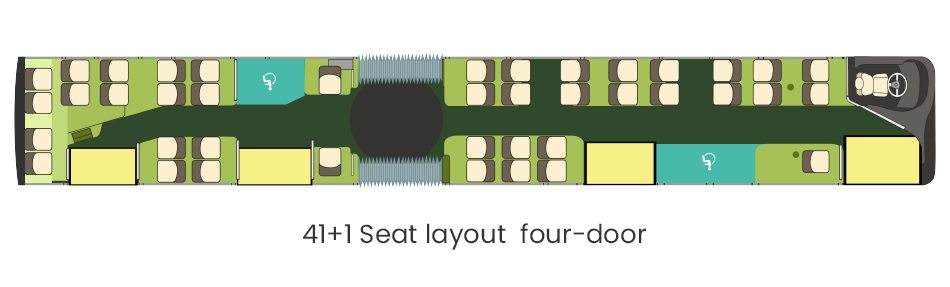

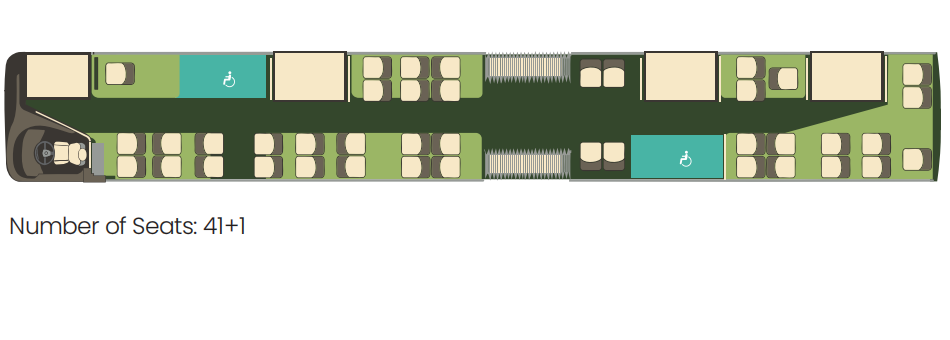

Seat Maps
